Description

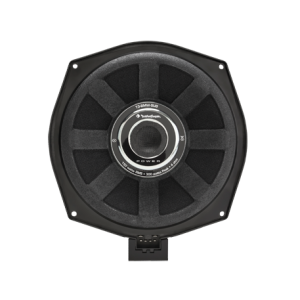

The T3-BMW1 is a direct fit replacement/upgrade speaker system for select BMW® models. Speaker features a BMW® factory connector, 1” silk tweeter and glass fiber woofer.
- OEM Frame Style-3
- 4" 2-way component system
- Glass fiber sandwich cone with Nomex honeycomb core
- Poly-Urethenane Dust Cap
- SBR surround and Bimax spider
- Glass fiber reinforced poly-carbonate frame
- Neodymium ring style magnet
- 25mm voice coil with high temp aluminum former
- Tweeter: Silk diaphragm and surround
- Tweeter: 25mm voice coil
- Tweeter: Neodymium motor structure
- Tweeter: Glass fiber reinforced polyamid frame
- Direct plug-in to factory BMW® harness
- In-line external crossover
- 3 models available (depending upon BMW® series)
- 2 Year Standard Warranty
Specification
- CEA-2031 Compliant: CEA-2031 Guidelines
- Configuration: 2-Way Component System
- Midrange Diameter (in/mm): 4.0"
- Midrange Depth (in/mm): 1.14" (29.1mm)
- Tweeter Diameter (in/mm): 1.0" (25 mm)
- Tweeter Depth (in/mm): 0.375" (9.5 mm)
- Nominal Impedance (Ohms): 4-Ohm
- Frequency Response (Hz): 75Hz - 20kHz
- Power Handling (RMS): 50 Watts RMS | 100 Watts MAX
- Crossover: External inline tweeter crossover
- Sensitivity (dB @ 1W/1M): 87 dB
- Mounting Hardware: Yes (Includes (1) pair tweeter bezels)
- Vehicle Compatibility:
- 1-SERIES 2011-Current
- 3-Door (F21) Front
- 5-Door (F20) Front
-
- 3-SERIES 2012-Current
- Coupe (F32) Front, Rear
- Sedan (F30) Front, Rear
- Touring (F31) Front, Rear
-
- 6-SERIES 2011-Current
- Coupe (F13) Front
- Convertible (F12) Front
-
- X3 2010-Current
- SUV (F25) Front, Rear
