Description

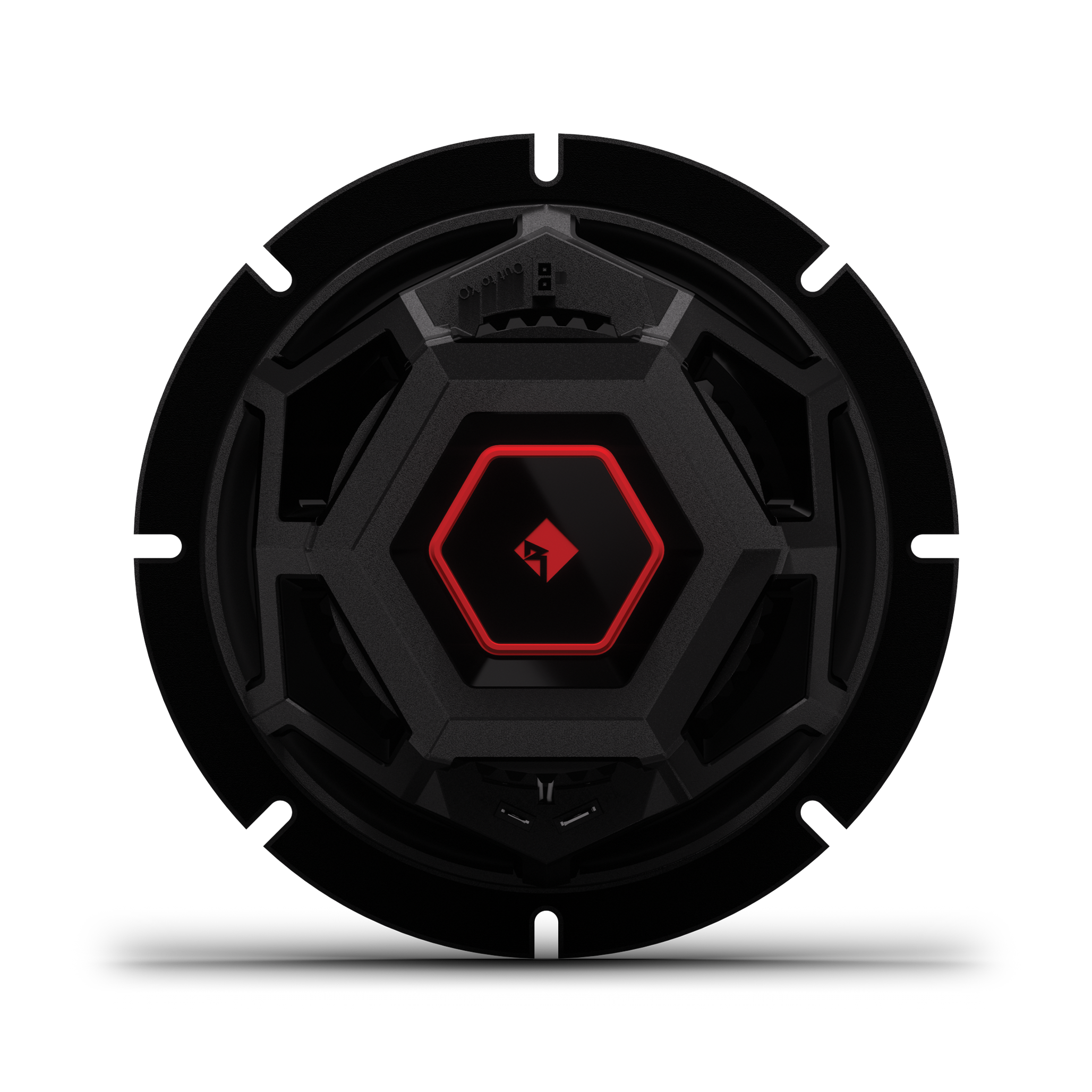

P2V2-675
The family of P2 PUNCH speakers were engineered to fit and built to put you in control. With a versatile convertible design, these speakers can be configured as either component or coaxial systems to suit your setup. The internal/external crossovers and redesigned frame geometry ensures seamless integration and installation. A larger motor, precision-tuned tweeter configuration, and ultra-durable materials deliver relentless output and uncompromising reliability.
Auto Fit Architecture: Everything was engineered to fit. A re-designed frame, mounting holes, removable motor cover and speaker diameter were all engineered to ensure seamless integration into today’s modern vehicles. Our factory location mounting flanges provide a flexible yet precise alignment for drop-in integration into most factory mounting locations.

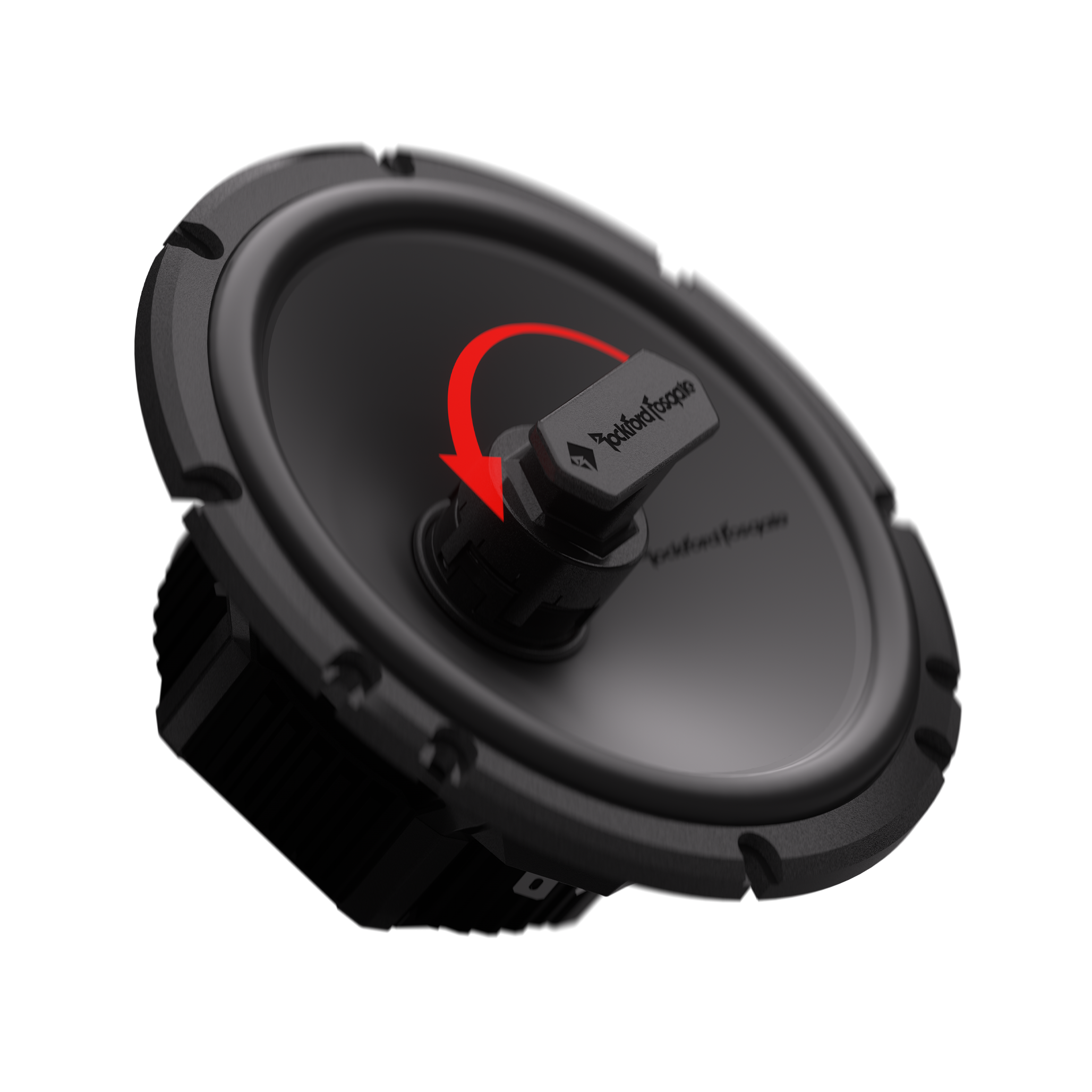

Superior Flexibility: With a versatile convertible design, these speakers can be configured as either component or coaxial systems to suit your setup. The Interchangeable Locking Mechanism (I.L.M.) lets you lock and unlock the tweeter from the wired mounting cup with zero hassle. This flexible design allows you to take even more control over your install layout and tweeter location. All engineered to ensure a seamless fit in most modern vehicles and to make installation as smooth and adaptable as possible.
Performance Driven: Powered by our advanced VAST 2.0™ technology, the PUNCH series delivers a 25% increase in cone area, resulting in maximum output and deeper, more impactful bass. The inverted dome tweeter ensures a precise high-frequency range, so every note comes through with clarity and accuracy. Rated at 75W RMS and 150W peak, PUNCH speakers deliver the output you demand, loud, clean, and relentless.
Built to Last: Every component. Every material. Chosen for strength. Built for the long haul. From reinforced polymer baskets to Santoprene™ surrounds and Nomex® spiders, every part of the PUNCH speaker is engineered to be a workhorse. No matter how hard you drive them, the class-leading construction delivers relentless performance that lasts.

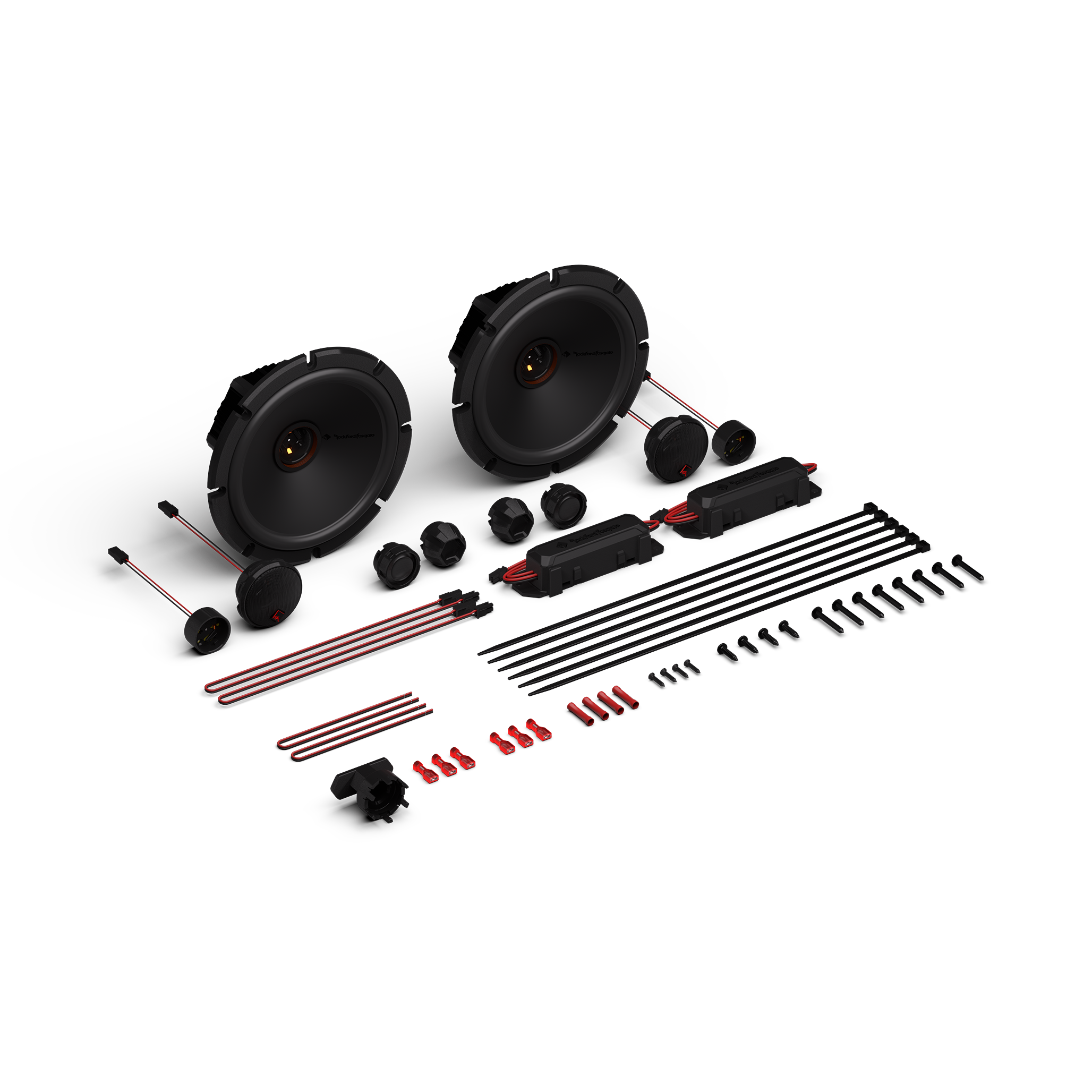

Kit Includes:
• (2) 3/4" 4Ω Tweeters

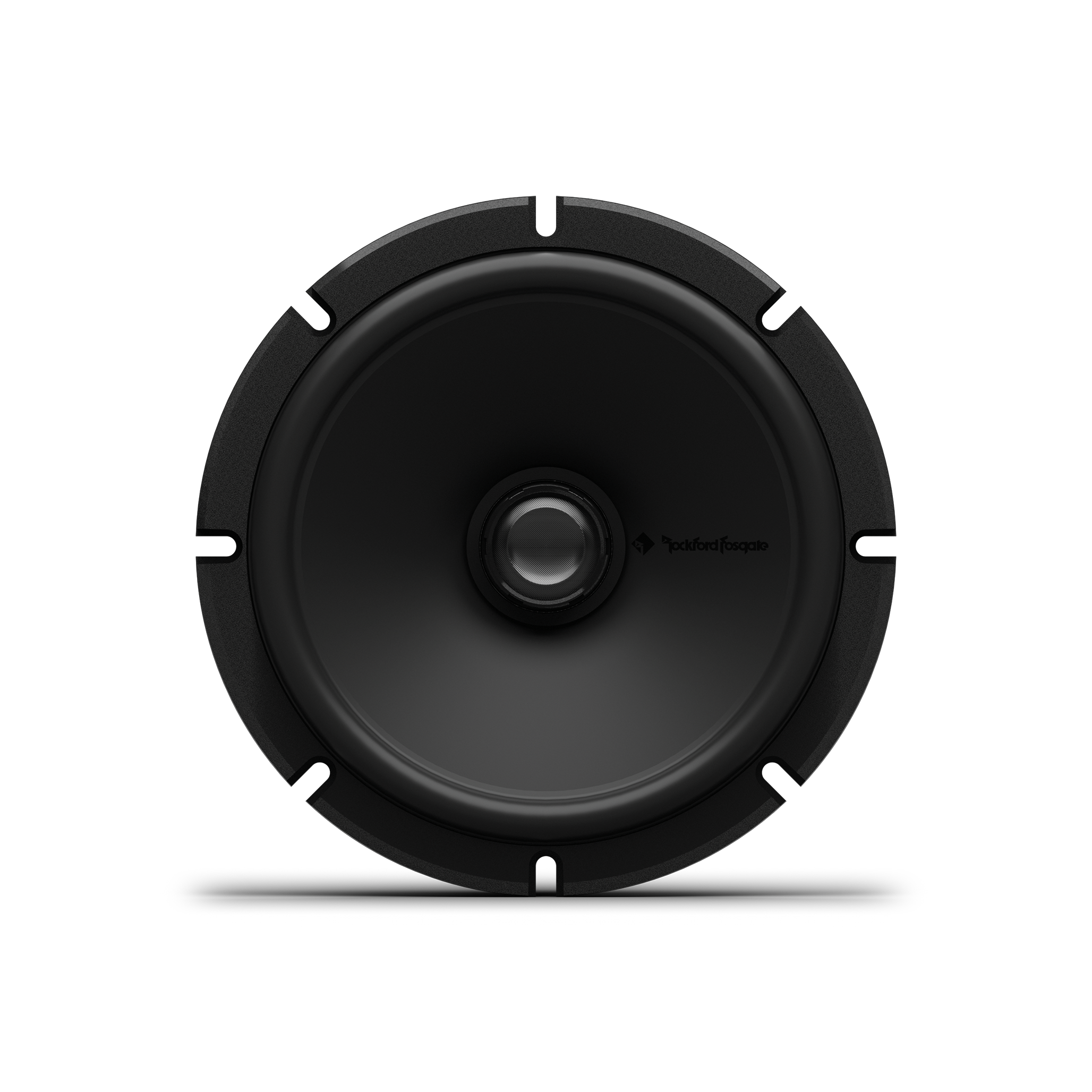

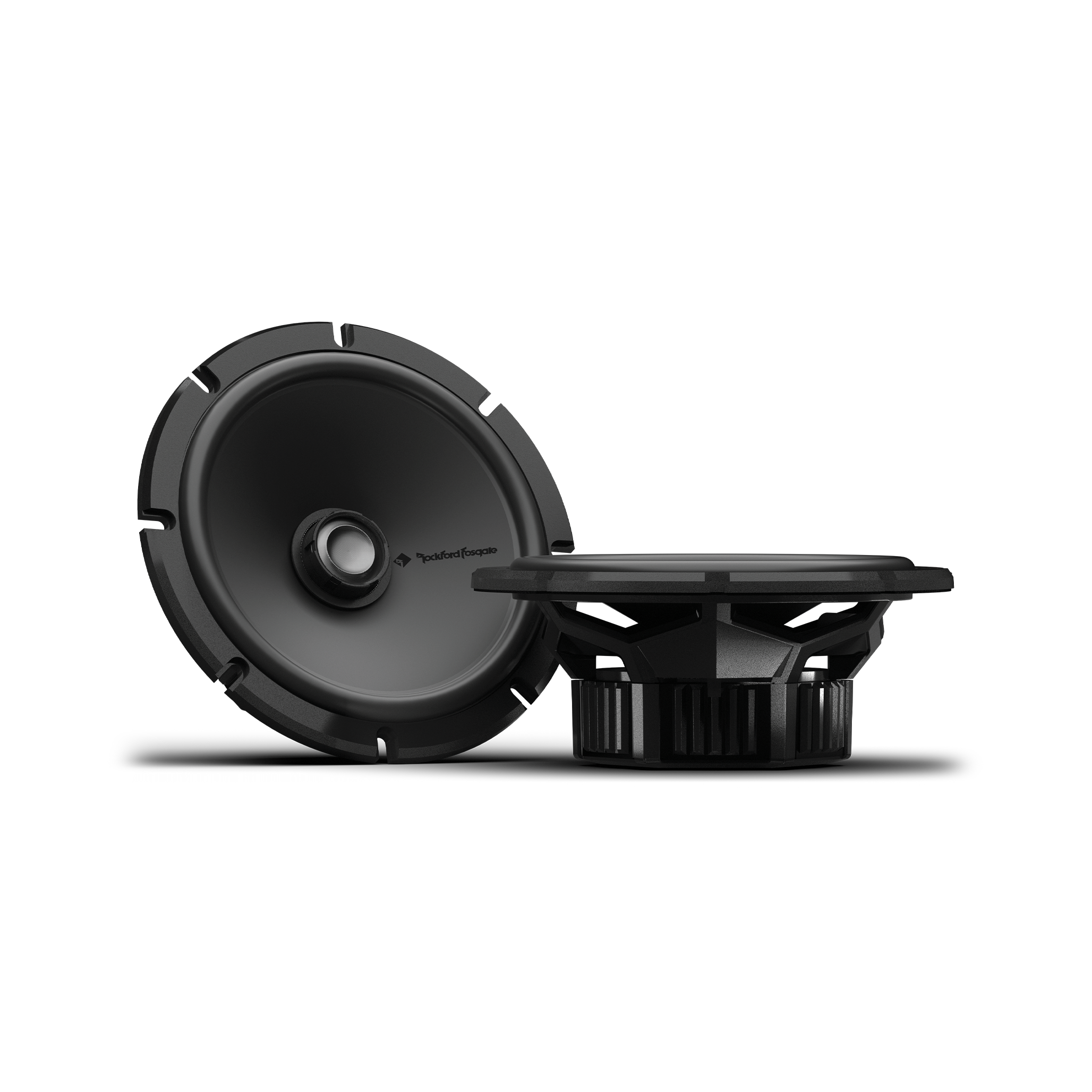

• (2) 6.75" 4Ω Convertible Speakers
• (2) Crossovers
• (1) Tweeter Removal Tool
• Installation Hardware
FEATURES AT A GLANCE
- I.L.M. (Interchangeable Locking Mechanism) allows configuration as a coaxial or component system
- Upgradable to a 3-Way Component by adding the P3V2-25 midrange speaker
- 3/4” (19 mm) Tetolon® inverted dome tweeter for reliable performance under stress
- Updated mounting flanges for direct fitment in new vehicles
- Surface/flush tweeter cups use copper spring contacts for front-side servicing (tool included)
- Flush-mount threaded tweeter cup fits 3/8" thick panels using 1.5" hole-saw cutout

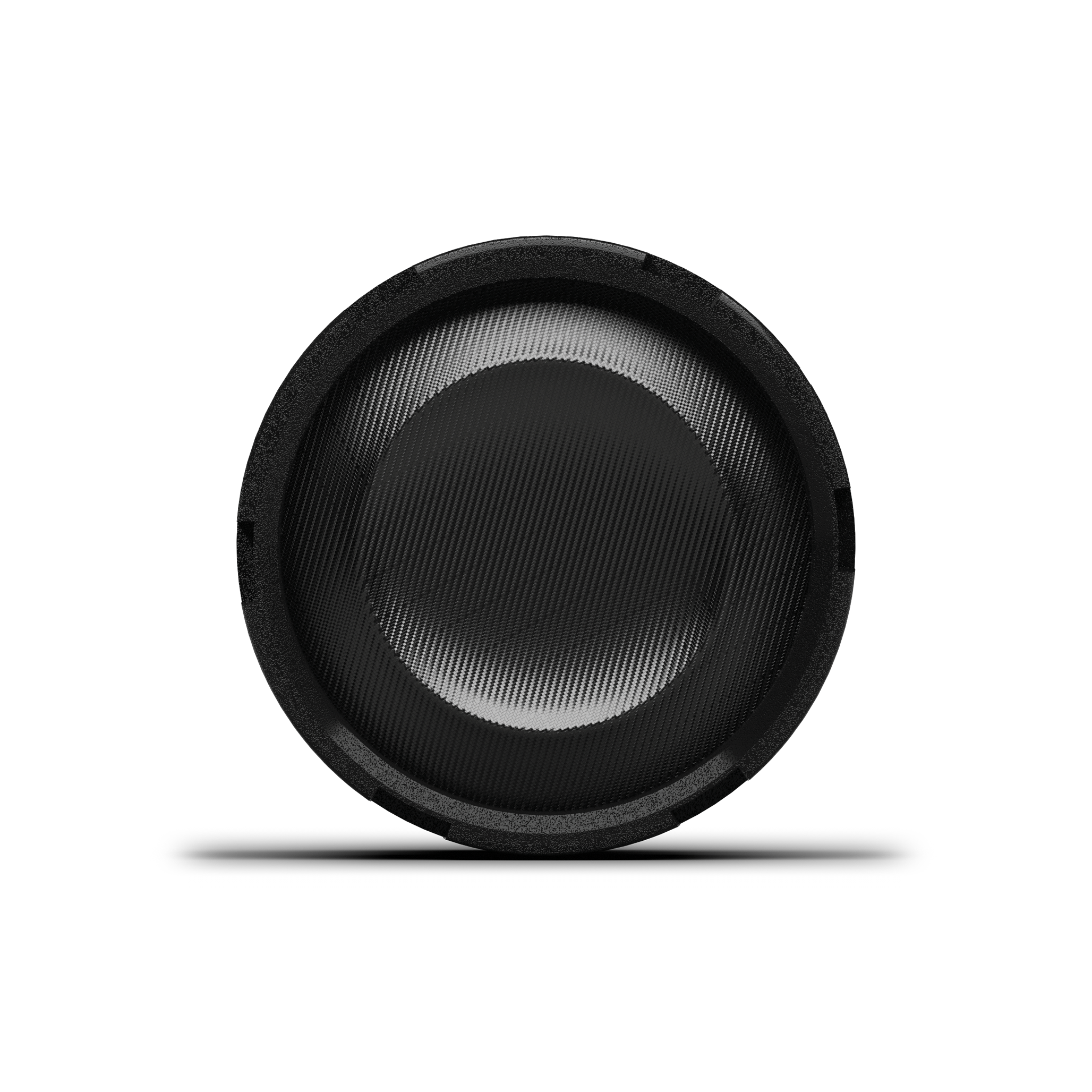

- 20-40% Mica reinforced Polypropylene curvilinear cone for enhanced rigidity and sonic quality
- Includes woofer phase plug when tweeter relocated to separate tweeter cup
- Santoprene™ half-roll surround for low distortion and unmatched fatigue resistance
- Co-molded surround and cone body chemically bonded for high durability
- Ultra-flexible braded tinsel leads securely stitched to spider
- Fatigue and tear resistant linear Nomex® spider

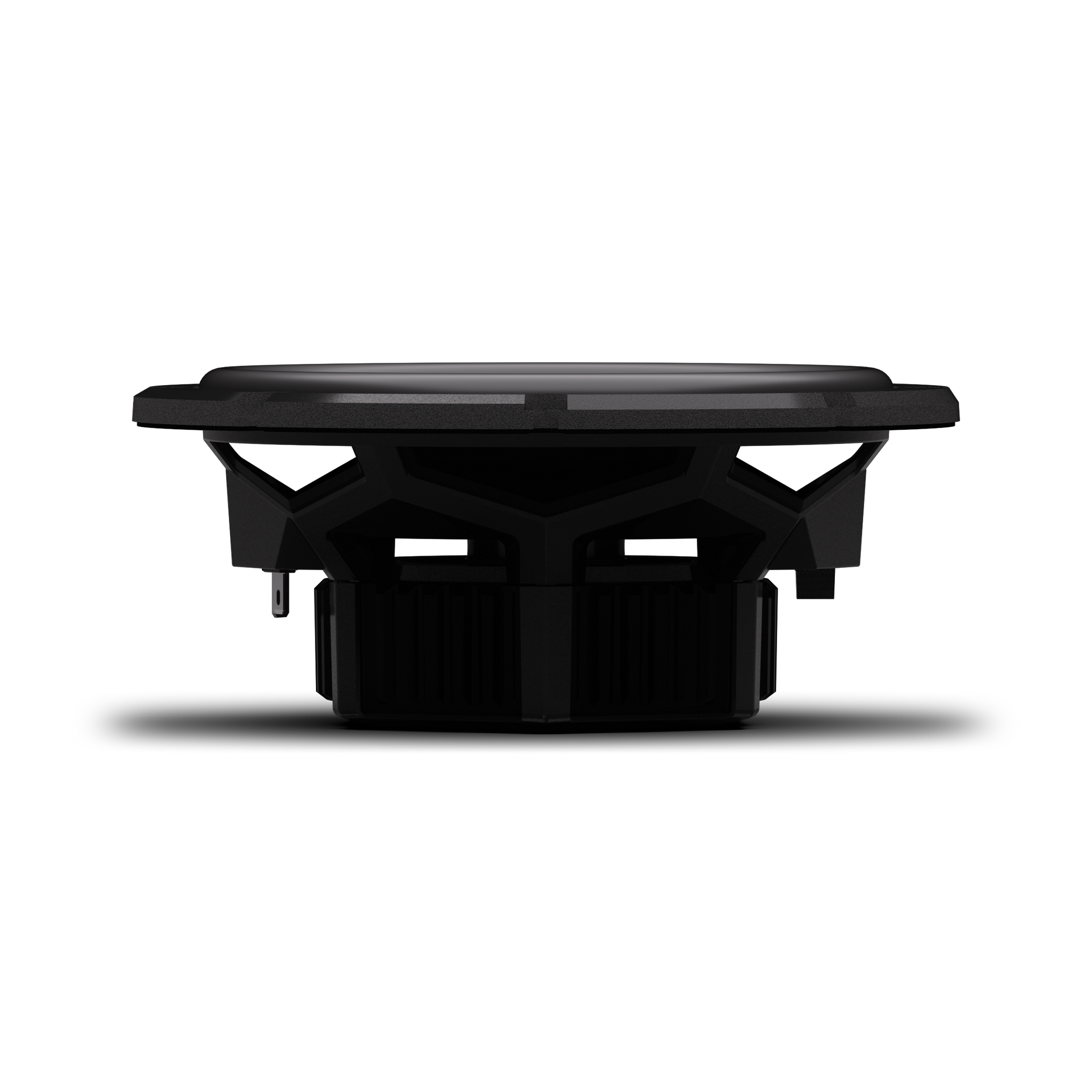

- 15% glass-fiber reinforced PA66 injected molded composite basket
- Vented Kapton® voice coil former for excellent heat dissipation
- Overhung voice coil ensures consistent magnetic flux for less speaker distortion
- High strength Y35 ferrite motor structure (5mm larger over previous generation)
- 2-pin micro-Molex crossover connection that are secured using screws or zip ties

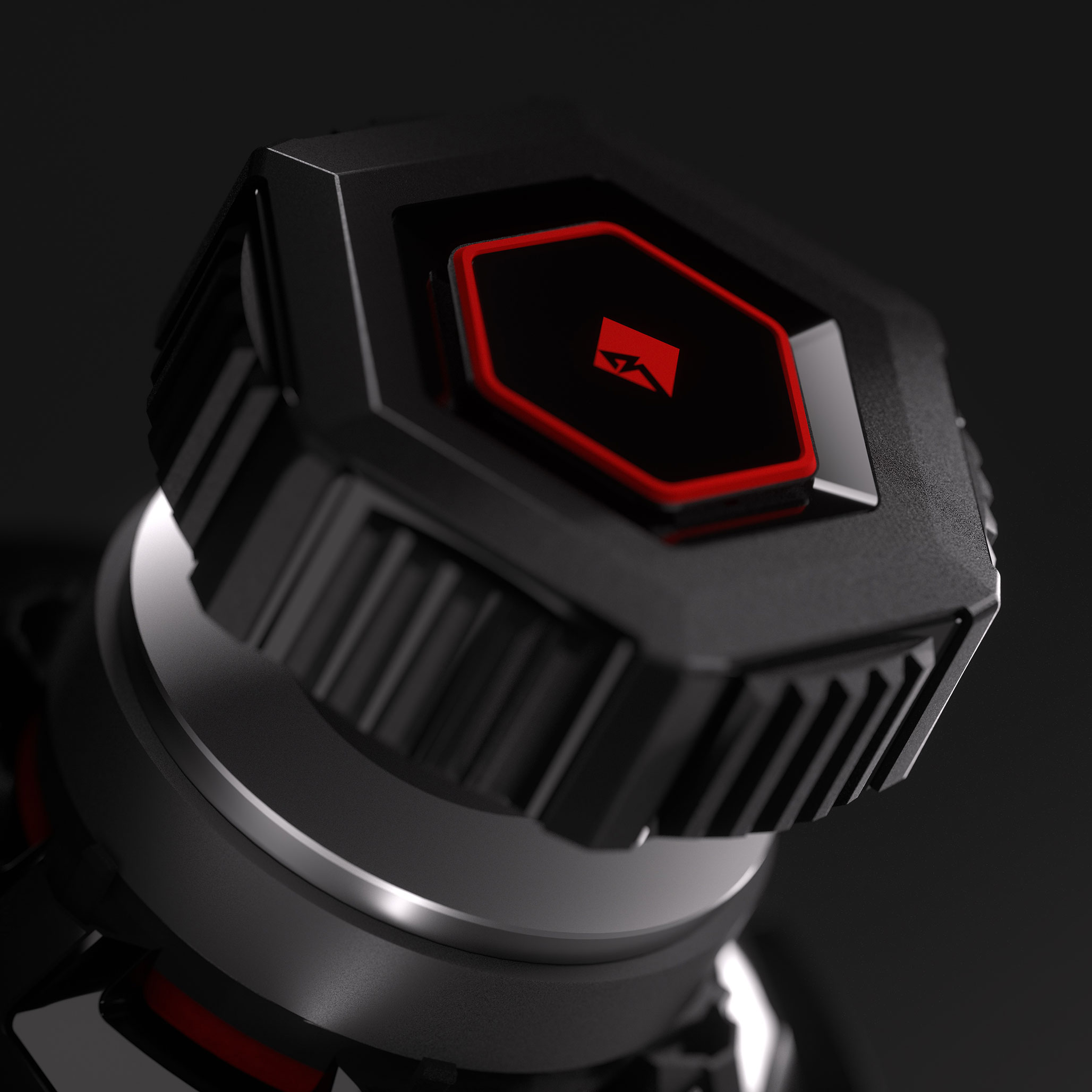

- Removable motor cover for fitment in tight applications

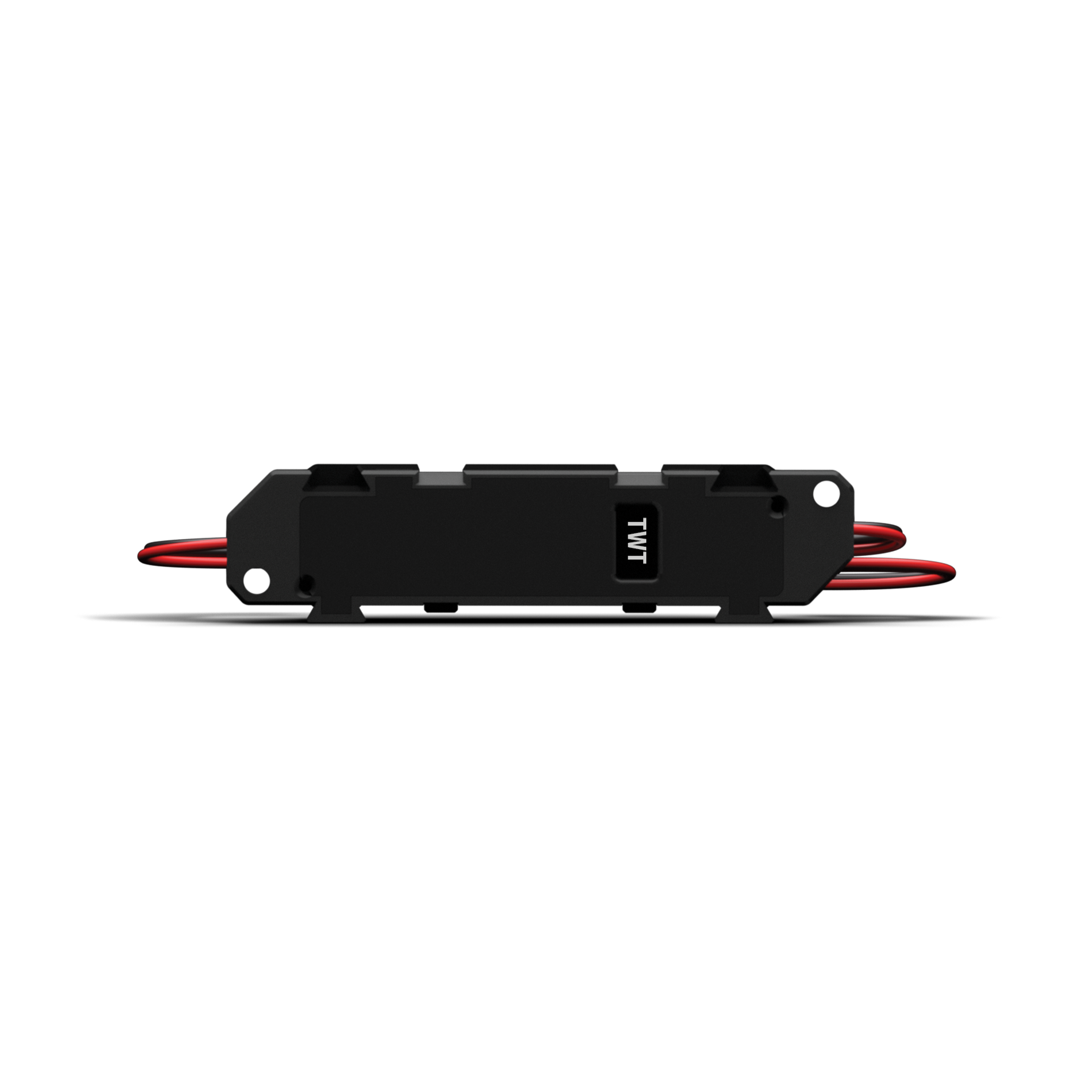

- ICC+ (internal concealed crossover) 6dB with 12dB external option and -3dB tweeter attenuation
- Co-molded basket terminals for secure connectivity
- Includes mounting hardware
- Includes cut-out template
- Grilles sold separately
- Sold in pairs (2 each)
- 2-Year Warranty
