Description

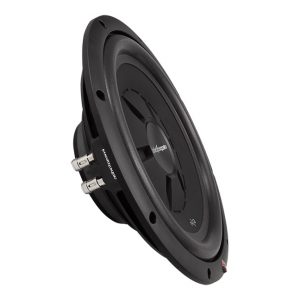

Rockford Fosgate has always been known as "The PUNCH" and the P2 8" subwoofer certainly continues with the tradition. Kevlar fiber reinforced paper cones deliver bass impact you can feel along with VAST technology to increase surface cone area up to 25%. The P2 subwoofers perform best in standard sealed and vented enclosures. Includes diamond cut cast aluminum trim ring. Optional grille insert available.
- Diamond cut cast aluminum trim ring with optional grille
- StampCast basket with integrated spider venting
- Kevlar fiber reinforced paper cone
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
- Protective PVC textured magnet cover
- Extended pole piece and bumped vented backplate
- Custom 10-AWG nickel plated push terminals
- Dual linear spider with embedded 16 AWG tinsel leads
- 1 Year Warranty
Specifications:
- Magnet Weight (oz): 49 oz. (1.38 kg.)
- Nominal Impedance: Dual 4-Ohm
- Speaker Connector: Dual 10 AWG compression
- Shipping Weight: 10.763 Lbs. (4.88 kg.)
- Voice Coil Diameter: 2.25" (57.7 mm)
- SPL (dB @ 1w/1m): 83
- Fs (Hz): 43
- Cutout Diameter: 7.13 in. (181 mm)
- Re (Ohms): 6.90
- Size: 8"
- Sd (cm2): 221
- Power Handling (Watts RMS): 250 Watts RMS | 500 Watts Max
- Mounting Depth: 4.76 in. (120.8 mm)
- Qts: 0.52
- Qes: 0.58
- Qms: 5.40
- Vas (Liters): 9.9
- Xmax (mm): 7.7
- Le (mH): 4.3
- Woofer Displacement: 0.042 cu. ft. (1.2 Liters)
- CEA-2031 Compliant:
- Subwoofer Type: Standard
- Voice Coil Type: Dual Voice Coil
- Sealed Box Volume (Vb): 0.23 cu. ft. (6.5 Liters)
- Vented Box Volume (Vb): 0.65 cu. ft. (18.4 Liters)
